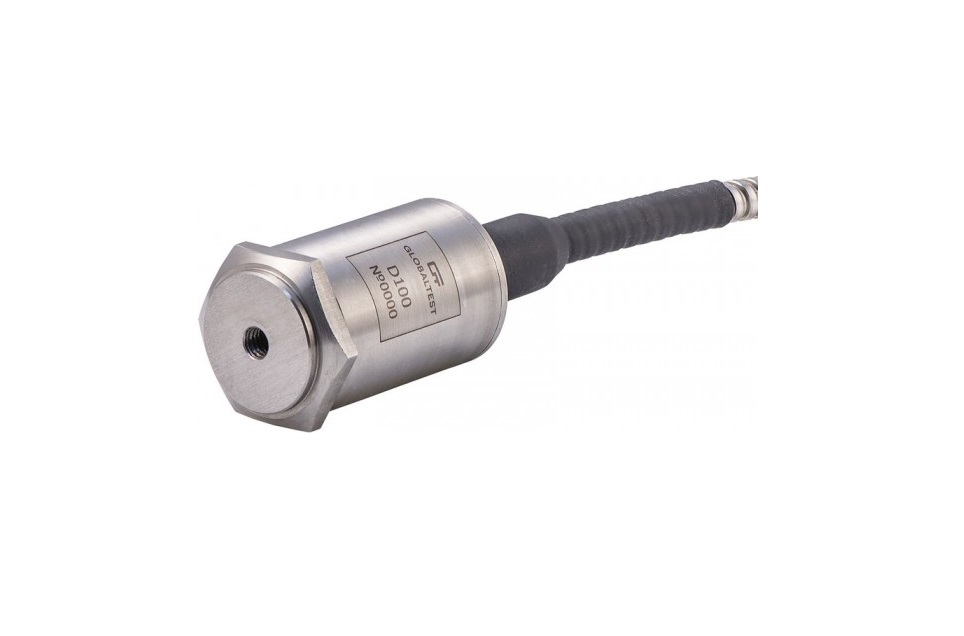

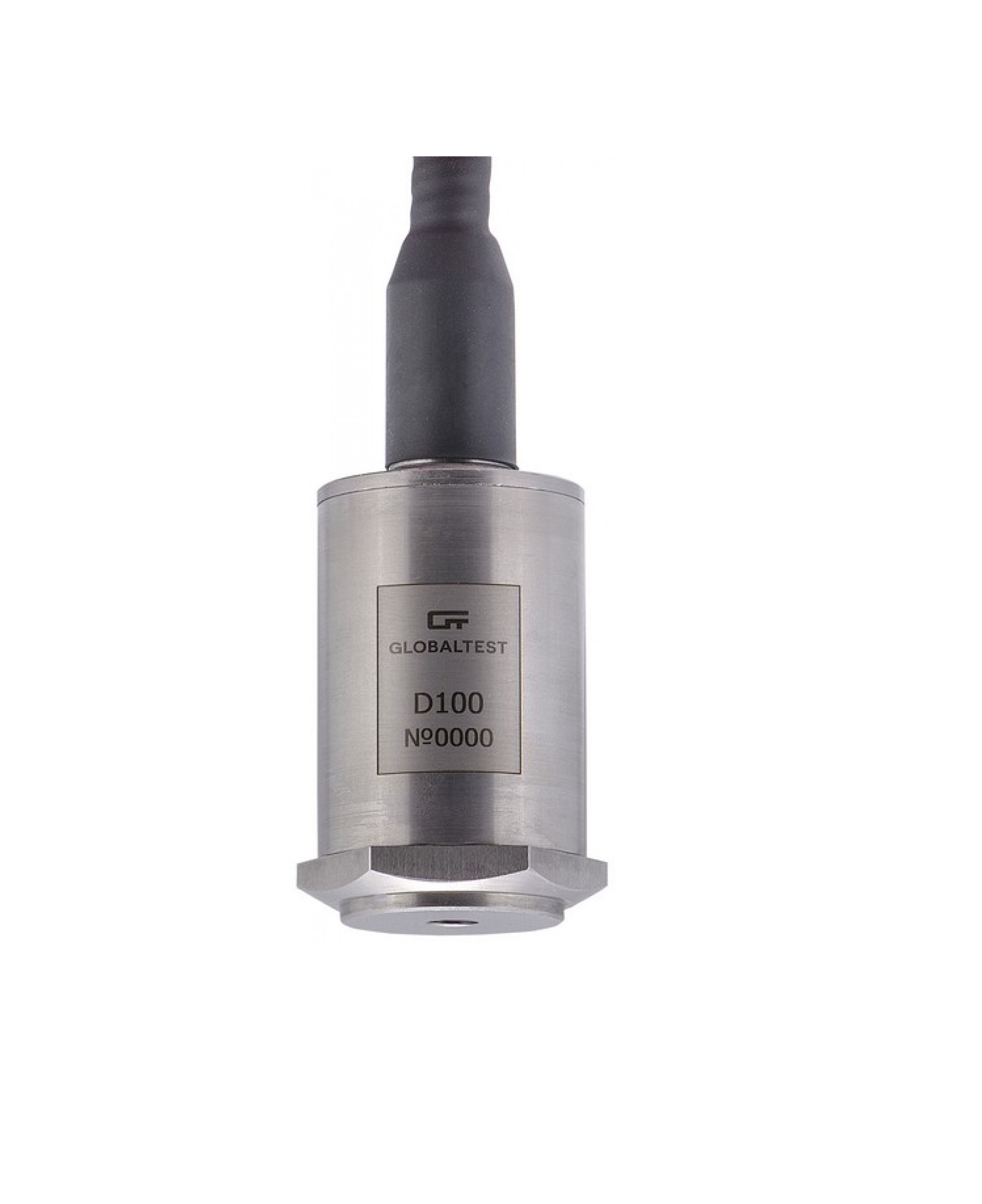

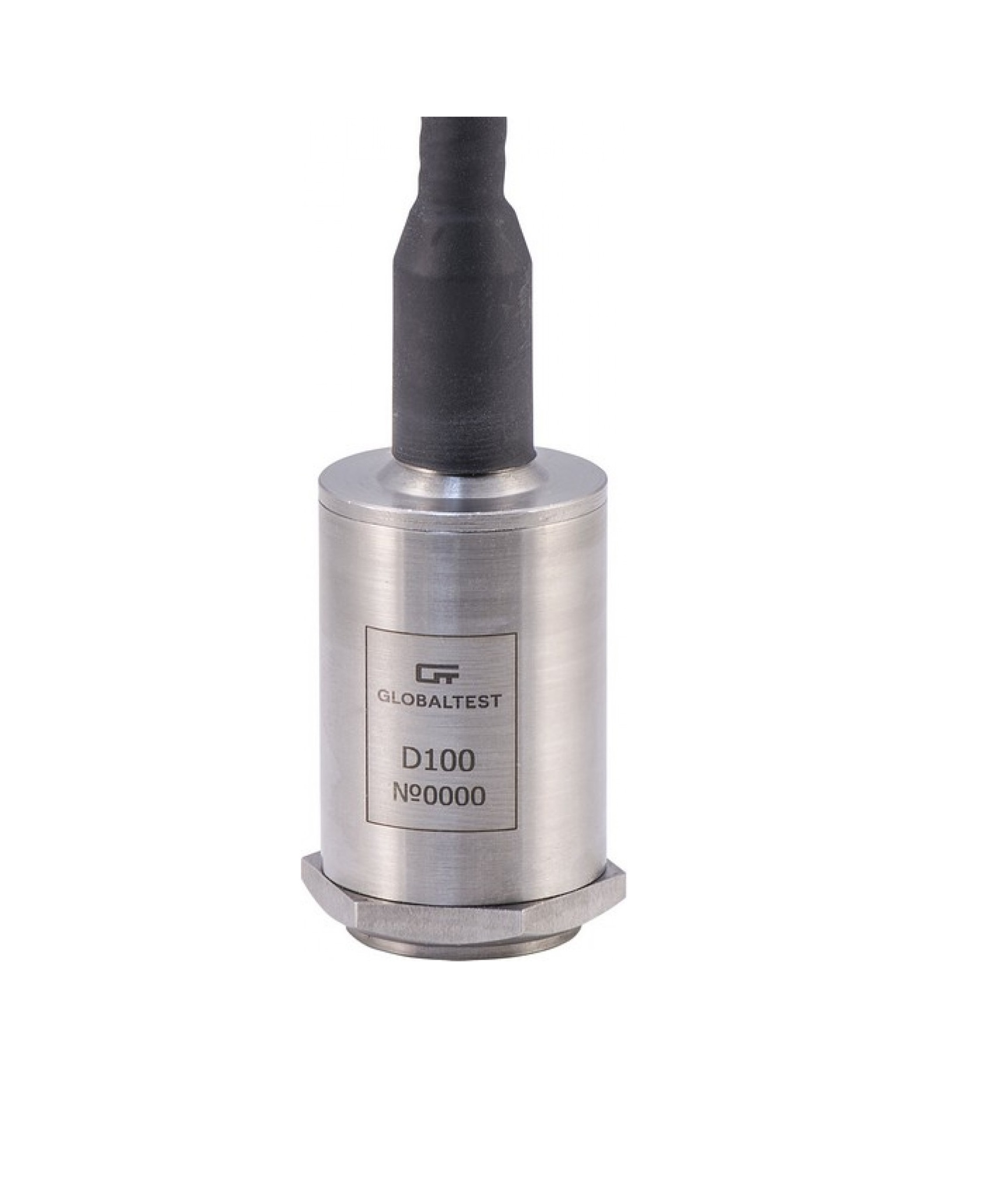

[진동변위] D100 계열 (with current output)
페이지 정보
작성자최고관리자 댓글 0건 조회 273회 작성일 20-05-09 17:53본문
Purpose
표준 전류 출력 (4–20mA)을 사용하여 고정 진동 진단 시스템의 진동 변위 측정.
Features
Conversion of a piezoelement signal proportional to vibration displacement into a standard current signal 4 ... 20 mA.
Electric insulation of piezoelement and built-in amplifier-transducer from the body eliminates the influence of grounding loop currents on measurement results.
Robust design, waterproof casing and non-detachable armored cable.
Stable characteristics and reliable operation.
Transmission of current signal at a distance of up to 500 m.
