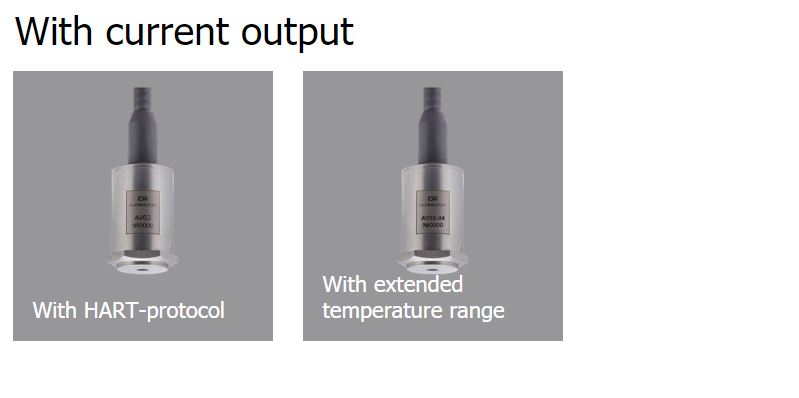

[진동속도] AV02**계열 (with current output & HART-protocol)
페이지 정보
작성자최고관리자 댓글 0건 조회 296회 작성일 20-05-10 07:33본문
Purpose
표준 전류 출력 (4–20mA)을 사용하여 고정 진동 진단 시스템의 진동 속도 측정.
Features
Conversion of a piezoelement signal proportional to vibration velocity into a standard current signal 4 ... 20 mA..
HART-protocol (Highway Addressable Remote Transducer Protocol) - digital industrial protocol for transfer of data superimposed on a current analog loop of 4 ... 20 mA. Electric insulation of piezoelement and built-in amplifier-transducer from the body eliminates the influence of grounding loop currents on measurement results.
Robust design, waterproof casing and non-detachable armored cable.
Stable characteristics and reliable operation.
Transmission of current signal at a distance of up to 1 000 m.
- Evaluation of machines vibration according to GOST ISO 10816-97, GOST ISO 10816-3-2002.
- Explosion-proof version 1ExibIICT4 (optional).
